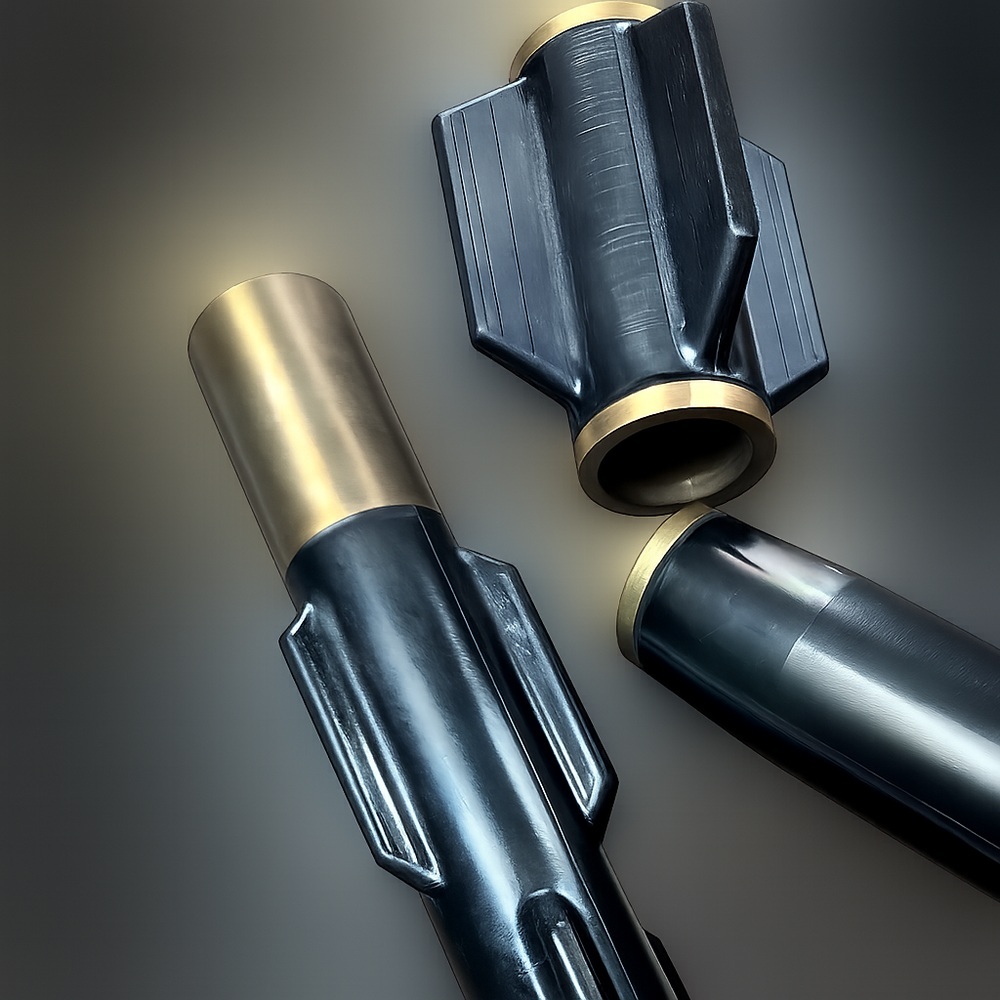

Eutsler Custom Elastomer Centralizer Products
Eutsler Technical Products manufactures custom elastomer centralizers that provide controlled centering, damping, and alignment in demanding environments such as downhole drilling, well completion, energy infrastructure, and industrial alignment assemblies.
Our Enhanced Centralizer Technology combines:
- Advanced compound engineeringfor wear, heat, and chemical resistance
- Finite element–optimized geometryfor load distribution and low drag
- Precision molding and post-processing for dimensional accuracy and consistency
Each Eutsler centralizer is built to perform under severe mechanical, chemical, and temperature extremes, ensuring stable tool alignment, extended service life, and reduced maintenance cycles.
Core Design Features
Precision Centering & Load Distribution
- Engineered elastomer geometries maintain concentric alignment under dynamic and static loads
- Radial symmetry ensures low runout and consistent bore clearance
Advanced Elastomer Compounds
- Tailored for abrasion, extrusion, and hydrocarbon resistance
- Compounds validated through rheometry (ASTM D5289) and heat-aging (ASTM D573)
Reinforced & Bonded Structures
- Elastomer-to-metal bondingfor sleeve or mandrel-mounted systems
- Integrated reinforcement layers(fabric, aramid cord, or wire) to control expansion
Controlled Expansion & Compliance
- Designed to absorb lateral load and maintain bore centralization
- Tunable stiffness and rebound for controlled flex during deployment
- Predictable deflection curve through FEA-validated modeling
Material & Compound Engineering
| Property | Examples | Performance Attributes |
|---|---|---|
| High Strength Hydrocarbon-Resistant | HNBR, FKM, TFEP | Excellent tensile and tear strength, hydrocarbon and H₂S resistance |
| Wear & Abrasion Resistant | XNBR, HNBR | Superior tear resistance and surface durability |
| Elastic Centering Materials | NR, SBR | High rebound and elastic memory for self-centering applications |
| High-Temperature Service | FKM, FFKM | Continuous operation up to 450–500 °F |
| Chemical / Steam Resistant | EPDM, TFEP | Excellent in polar environments, brine, and chemical exposure |
Each material system is designed and mixed in-house to achieve precise:
- Hardness (typically 60–95 Shore A)
- Tear strength for impact and extrusion resistance
- Compression modulus for consistent load response
- Elasticity measurements for dynamic centering and vibration damping
Manufacturing Capabilities
Molding & Fabrication
- Compression and transfer molding for large cross-sections and reinforced structures
- Precision machining for uniform OD/ID concentricity and low TIR
- Bonded metal and composite mandrel integration
- Custom segmented molds for long-length or large-diameter components
Bonding & Assembly
- Advanced primer/tie-coat systems ensure robust elastomer-to-metal adhesion (ASTM D429 tested)
- Controlled bond-line thickness to prevent shear delamination
- Option for hybrid multi-material assemblies (elastomer–metal–fabric–polymer)
Finishing & Post-Processing
- Cryogenic and mechanical deflashing
- Surface grinding, polishing, and chamfering for bore-fit accuracy
- Post-cure thermal treatment for dimensional stabilization and outgassing control
Performance Specifications
| Property | Typical Range | Test Standard / Notes |
|---|---|---|
| Hardness | 60–95 Shore A | ASTM D2240 |
| Tensile Strength | 1,500–4,500 psi | ASTM D412 |
| Elongation | 150–600% | ASTM D412 |
| Tear Strength | 100–350 ppi | ASTM D624 |
| Compression Set | <25% | ASTM D395 |
| Operating Temperature | –60 °F to +450 °F | Material-dependent |
| Bond Strength | 10–25 MPa | ASTM D429 |
| Runout (TIR) | <0.010 in typical | Measured on finished assemblies |
| Wear Resistance | High; abrasion loss <150 mm³ | ASTM D5963 |
Application Engineering
Centralizer Functions
- Maintain tool or pipe centeringin casing or borehole
- Prevent metal-to-metal contact, reducing wear and vibration
- Provide dampingto absorb lateral and torsional loads
- Facilitate fluid flow clearanceduring circulation or injection
- Reduce drag and torqueduring deployment
Design Optimization
- FEA-based simulationspredict deflection, contact load, and expansion envelope
- Segmented blade or sleeve geometriesfor controlled flexibility
- Material gradientsand multi-durometer designs for optimized stress response
- Grooved or ribbed surfacesto enhance fluid bypass and debris flow
Testing & Validation
Each centralizer design undergoes laboratory and field validation to ensure repeatable performance:
- Dimensional Verification– OD/ID, concentricity, and groove geometry inspection
- Bond Peel / Shear Testing– ASTM D429 qualification for elastomer-to-metal systems
- Compression Deflection Testing– Simulated axial and radial loading
- Thermal & Pressure Cycling– Exposure from –60 °F to +450 °F under differential pressures
- Fluid Compatibility Testing– ASTM D471 immersion in oils, brines, drilling fluids
- Wear Simulation– Abrasion and cyclic wear testing under load conditions
Typical Applications
- Downhole Packer & Isolation Tools – Elastomer centralizers integrated into sealing stacks
- Drilling String Centralizers – Abrasion-resistant sleeves bonded to mandrels
- Casing Alignment Systems – Large-diameter centralizers for well construction and cementing tools
- Flow Tube & Screen Support Rings – Provide vibration damping and radial stability
Advantages of Eutsler Centralizer Technology
- Complete Material-to-Part Integration – In-house compounding, bonding, molding, and machining
- Precision Concentricity Control – CNC machining and inspection for tight TIR limits
- Validated Performance – ASTM and field-tested for tear, abrasion, and load retention
- Custom-Engineered Solutions – Tailored to your bore size, pressure rating, and media exposure
- High Strength & Resilience – Reinforced compounds resist deformation under load
- Traceable Quality – Full production lot control, from raw polymer to final inspection
Performance Envelope
| Capability | Typical Range |
|---|---|
| Temperature Range | –60 °F to +450 °F |
| Pressure Endurance | Up to 20,000 psi (geometry-dependent) |
| Durometer Range | 60–95 Shore A |
| Axial Compression Deflection | 5–20% controlled |
| TIR / Concentricity | <0.010 in typical |
| Abrasion Resistance | <150 mm³ wear loss |
| Chemical Resistance | Hydrocarbons, CO₂, brine, acids, and drilling fluids |
From Concept to Completion
- Define: Functional load, temperature, and chemical exposure
- Design: Material selection, geometry modeling, and bond interface development
- Prototype: Small-scale molded centralizer runs and performance verification
- Validate: Laboratory and field simulation testing
- Deliver: Fully qualified, production-ready centralizer assemblies
Partner with Eutsler Technical Products
Eutsler’s Custom Elastomer Centralizer Products represent the intersection of materials science and mechanical engineering—designed, formulated, and manufactured for precision centering and long-term performance in the harshest environments.
