Elastomer Compounding Services
Overview
At Eutsler Technical Products, our production mixing department is the foundation of every high-performance elastomer we deliver.
We combine decades of compounding expertise, strict process control, and ISO 9001:2015-certified procedures to produce consistent, high-quality elastomer batches — whether standard formulations or custom-engineered compounds from our R&D laboratory.
Our mixing operations integrate traditional two-roll mill craftsmanship with modern process monitoring and rheological validation, ensuring compound homogeneity, reproducibility, and traceable batch quality across every elastomer family.
Eutsler’s capabilities extend from small R&D trial batches to full production runs, supporting critical applications in oilfield, aerospace, automotive, industrial, and defense sectors.
Core Objectives of Mixing Operations
- Achieve uniform dispersion of fillers, curatives, and reinforcing agents.
- Maintain controlled temperature rise to prevent premature scorch or cure.
- Preserve polymer chain integrity and optimize molecular distribution.
- Ensure compound reproducibility across different production scales.
- Deliver ready-to-mold materials with verified rheometric consistency.
Each batch undergoes rheology verification (ASTM D5289) and Mooney viscosity tracking (ASTM D1646) to confirm that cure rate, viscosity, and processability match the target master formulation.
Equipment Capabilities

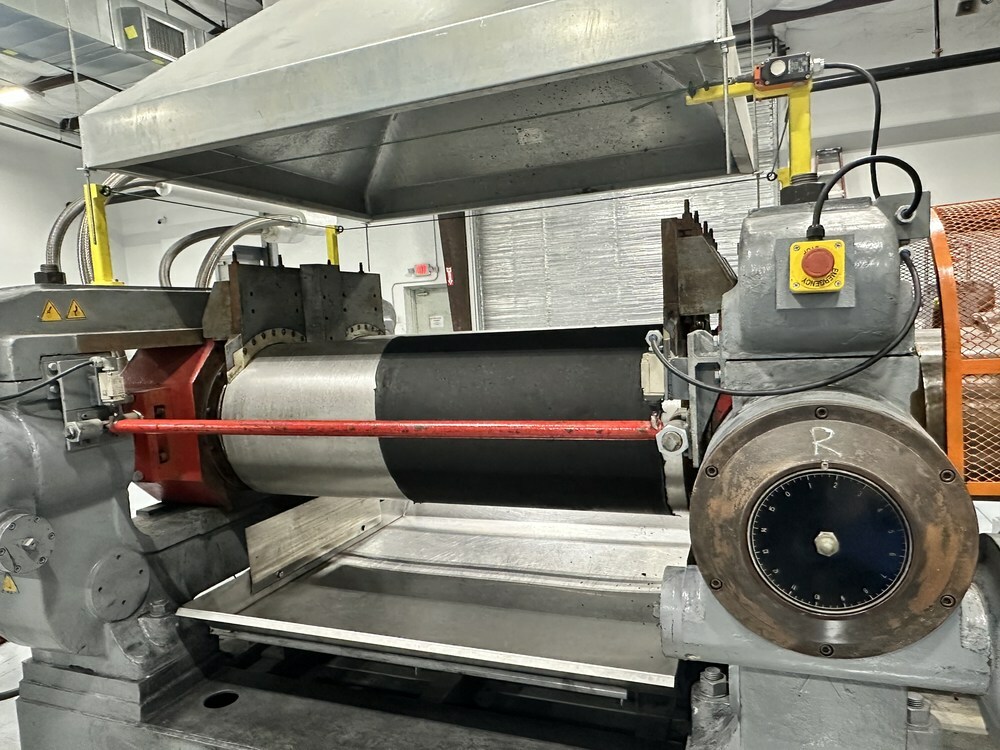

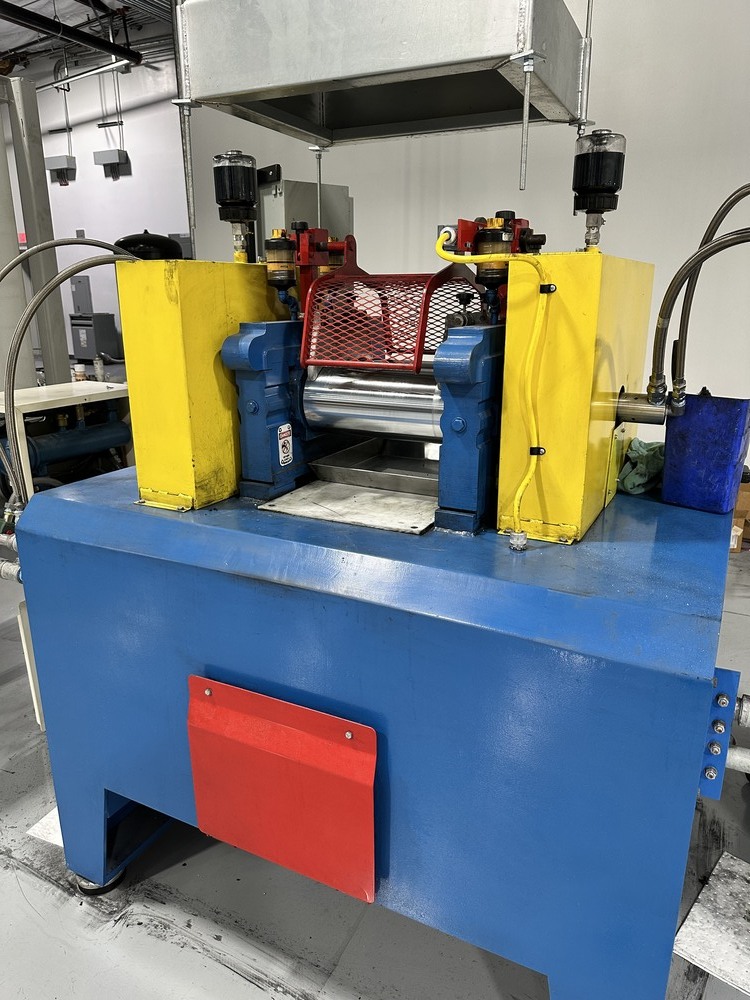

Two-Roll Mixing Mills
Eutsler operates multiple precision-engineered two-roll mills in both laboratory and production scales, enabling controlled dispersion and refinement of elastomer compounds.
- Roll Sizes: From 6” × 13” lab mills to 24” × 60” production mills.
- Variable friction ratios (1.1:1 to 1.4:1) for shear control.
- Temperature-controlled rolls (water/oil circulation) for consistent thermal management.
- Precision gap adjustment for sheet thickness control and uniform filler integration.
- Automatic nip lock and emergency safety systems for operator protection.
Applications:
- Masterbatch mixing
- Final stage curative addition
- Mill banding and refining
- “Mill rescue” processing for re-homogenizing aged stock
- Pigment, plasticizer, or additive dispersion adjustment
Eutsler’s operators use a documented mill mixing procedures detailing sequence timing, nip gap progression, roll temperature control, and band formation cycles to ensure every batch conforms to the validated compounding protocol.
Cooling and Batching
After mixing, compounds undergo controlled post-mix processing to ensure homogeneity, storage stability, and contamination-free readiness for molding.
Post-Mix Operations:
- Batching and identification: Each sheet is weighed, labeled, and trace-coded.
- Sheet thickness control: Typically 4–6 mm for optimal storage and preform cutting.
- Powder dusting or polyethylene interleaving to prevent sticking during storage.
- FIFO storage system ensures maximum freshness and uniform age for molding operations.
Get in Touch with Our Experts Today!
Process Control and Quality Assurance
Every production batch is verified for:
- Mooney viscosity – processability and flow consistency
- Rheometric cure curve – crosslinking kinetics (ASTM D5289)
- Hardness (Shore A) – durometer validation per specification
- Stress-strain properties
- Specific gravity – filler loading confirmation
- Sample retention – cured plaque kept for reference and traceability
Batch documentation includes:
- Raw material lot traceability
- Rheology curve and Mooney values
- Operator and date/time stamps
This data forms part of Eutsler’s Production Quality File (PQF) — a critical component for customer audits, aerospace documentation, and compound qualification packages.
Safety and Environmental Controls
Eutsler’s production floor is designed for both operator safety and environmental responsibility.
Safety Systems:
- Hydraulic mill nip safety bars and automatic reverse systems
- Dedicated fume extraction and dust control
Environmental Controls:
- Dust collection and containment for carbon black and silica
- Regenerative cooling water systems
- Material recycling and waste segregation for sustainability
- Ventilated compound curing and storage areas
Integration with R&D and Molding
The Production Mixing Department works in direct feedback with:
- R&D Lab: Transferring validated formulations and cure curves to production.
- Molding Division: Optimizing compound flow, cure rate, and mold release performance.
- Testing & QA: Closing the data loop between laboratory predictions and production performance.
This integration ensures consistent scale-up performance, where small-batch lab data translates directly into repeatable production compounds.
Representative Mixing Capabilities
| Capability | Range / Performance | Notes |
|---|---|---|
| Batch Size | 5 lb (lab) to 60 lb | Scalable from development to full production |
| Mill Temperature Range | Ambient to 300 °F | Controlled via oil or water circulation |
| Mixing Cycle Time | 5 – 15 minutes | Dependent on polymer and filler system |
| Friction Ratio | 1.1:1 – 1.4:1 | Adjusted to optimize shear and dispersion |
| Compound Viscosity Control | ±3 Mooney Units | Based on ASTM D1646 standards |
| Rheometric Reproducibility | ±5% of target torque | Based on ASTM D5289 curves |
| Storage Life | 3–12 months | Depends on polymer, cure system, and storage conditions |
Expertise in Specialized Mixing Challenges
- High-filler or conductive systems (e.g., carbon black >60 phr or metal oxides)
- Fluoroelastomer compounding – contamination-controlled environments
- Peroxide vs. bisphenol cure systems – separate mixing lines to prevent cross-cure interference
- Metal-oxide cure (CR, ECO, CSM) – specialized dispersion sequence
- TAIC, bismaleimide, and coagent dispersion for peroxide-cured FKM and HNBR
- Moisture-sensitive formulations – low-humidity processing areas
Summary
The Production Mill Mixing Department at Eutsler Technical Products combines traditional craftsmanship with advanced process control to deliver elastomer compounds of consistent quality, reproducible rheology, and optimal mechanical performance.
Every batch is formulated, mixed, and verified under a strict quality framework to ensure it meets the precise physical, chemical, and processing properties required for high-reliability applications.
Whether it’s a custom-developed fluorocarbon, a high-resilience NR bushing compound, or a complex peroxide-cured hybrid, Eutsler’s mixing operations guarantee repeatable performance from lab bench to production line.
Partner with Eutsler Technical Products for precision elastomer compounding built on scientific control, repeatable quality, and proven industrial durability.
