Advanced Elastomer-to-Metal, Elastomer-to-Fabric, and Multi-Material Bond Solutions

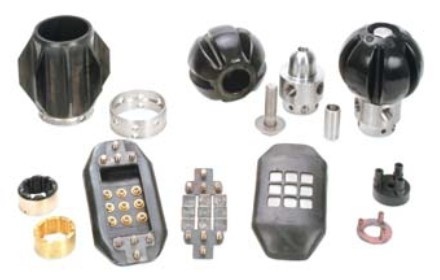

Rubber to Metal Bonding Services
Introduction
Sealing systems often require more than just molded rubber — they demand effective bonded assemblies where elastomer is securely adhered to metals, fabrics, composites, or plastics. Eutsler’s Enhanced Bonding Technology provides engineered adhesion solutions combining surface science, compound design, primer/tie-layer control, and in-mold vulcanization to create robust, long-lasting bonded parts.
Our expertise ensures:
- High peel/shear strength under mechanical, thermal, and chemical load
- Controlled cure integration with base elastomer
- Bond reliability under cycling, thermal swelling, and environment stress
Bonding Capabilities & Scope
Bond Interfaces
Eutsler supports bonding elastomer to:
- Metals: Steel, stainless, aluminum, brass, copper, and others
- Fabrics / Textiles: Aramid, glass, nylon, polyester
- Composites / Plastics: G10, PEEK, PTFE, UHMW, rigid polymers
Bonding Methods
Co-Curing / In-Mold Bonding
- Elastomer and substrate parts assembled into mold; cure system designed to crosslink elastomer and activate tie layer simultaneously.
- Provides highest bond integrity and dimensional control.
Pre-Bonded Overmolding
- Substrate pre-treated (primer / adhesive coat), placed in mold, overmolded with elastomer compound.
- Useful for retrofits, composite assemblies, or multi-stage processes.
Post-Cure Bonding / Adhesive Bonding
- Clean substrate; apply bonding adhesive or primer; place elastomer, apply heat/pressure, post-cure.
- Useful for smaller runs, aftermarket repairs, or hybrid workflows.
Bonding Design & Engineering Considerations
Surface Preparation
- Metals: Abrasive blast or grit-blast (e.g., 80–120 grit), degrease/clean (solvents or alkaline cleaners), oxide removal, passivation.
- Fabrics: Clean and pre-tension, ensure porosity, primer impregnation.
- Plastics/Composites: Abrasive blast or chemical etch (where applicable), compatibility checks.
Tie / Primer Layer Design
- Tie compounds: low-viscosity layers integrating chemical groups (carboxyl, epoxy, silane) to bond substrate and elastomer.
- Control thickness: too thick = stress concentration; too thin = weak join.
- Compatibility match: polar tie-layer for metals, hydrophobic for PTFE-lined surfaces, adjust chemistry to media.
Cure & Thermal Matching
- Matched cure chemistry: Ensure the bonding system or tie-layer cures synchronously (or compatibly) with primary elastomer (sulfur, peroxide, phenolic, bisphenol, diaminesl cures).
- Thermal expansion coefficient balance: Avoid differential expansion stresses under temperature cycling.
- Post-cure scheduling: bond cure must maintain integrity after full elastomer post-cure.
Mechanical Design for Bond Stress
- Bond area and geometry: maximize overlap, avoid point loads, provide backing surfaces.
- Edge design / chamfers: relieve shear stress at bond boundaries
- Interlocks / mechanical retention: knurls, undercuts, textured surfaces, or tie-rods to supplement adhesion
- Stress relief grooves: at transitions to minimize peel stress concentration
Quality Assurance & Testing
| Test Type | Standard / Method | Purpose |
|---|---|---|
| Bond Peel / Shear | ASTM D429, ISO 4624 | Measure adhesion strength (lb./in or MPa) |
| Cross-hatch / Tape | ASTM D3359 | Check for cohesive failure vs. adhesive failure |
| Fatigue Cycling | Custom or ASTM-based | Bond strength retention under repeated flex or bending |
| Thermal Cycling | –40 °F to +250/300 °F | Assess bond durability under environmental temperature shifts |
| Chemical Aging | Immersion in oils, acids, solvents | Evaluate bond interface integrity under media exposure |
| Delamination / Visual | Microscope, dye penetration | Detect micro-voids, bond creep, interface failures |
| Cohesive Integrity | Cross-section mechanical test | Ensure bond doesn’t shift failure into adhesive layer |
All bond testing is documented and retained trace samples.
Applicable Materials & Compatibility
| Elastomer / Substrate Pair | Recommended Tie / Primer Chemistry | Key Notes / Risks |
|---|---|---|
| Elastomer → Steel / Al | Carboxylated ties, silane coupling | Good mechanical anchoring; surface oxidation critical |
| Elastomer → Brass / Copper | Thiol-based primer or epoxysilane | Good bond in corrosive environments |
| Elastomer → Fabric | Impregnation + tie-coat | Ensure fiber wet-out and mechanical grip |
| Elastomer → PTFE / Fluoroplastic | Fluoro-silane + plasma/etch prior | Toughest interface; specialized primers required |
| Elastomer → Composite / G10 | Epoxy-compatible tie layer | Avoid delamination under cure shrink |
Each bonding system can be validated with mechanical and aging cycles in intended media to ensure reliability.
Performance Metrics & Typical Ranges
| Bond Attribute | Typical Range / Goal |
|---|---|
| Peel Strength (lb/in or N/mm) | 20 – 100+ (depending on substrate and elastomer) |
| Shear Strength (MPa) | 5 – 25+ |
| Cohesive Failure Mode | Desired: elastomer tear rather than separation |
| Retention after Aging | ≥ 70–90% bond strength after heat/chemical cycles |
| Thermal Cycle Retention | Minimal peel loss after thermal cycling |
| Temperature Range (Bonded Assembly) | Compound-limited, typically +300 °F or higher |
| Bond Line Thickness | 0.5 – 2 mil (0.013 – 0.05 mm), subject to area/geometry |
Have Questions About Our products or Services?
Get in Touch with Our Experts Today!
Use Cases & Application Examples
- Oilfield Packers & Slips: Elastomer bodies bonded to metal backup rings or flanges; high peeling/stress margins for downhole cycling.
- Rotary Shaft Seals with Metal Carriers: Elastomer lip bonded to drive ring; rigid insert; tie-coat integration ensures torque transfer and seal stability.
- Composite Diaphragm Assemblies: Fabric-reinforced elastomer discs bonded to rigid metal frames; life-critical in pump & valve service.
- Electrical Insulated Seals: VMQ or FVMQ bonded to metal flange; bond must maintain dielectric separation under thermal cycles.
- PTFE-Faced Face Seals: Fluoroelastomer base body bonded to thin PTFE face plate; dual-chemistry bond systems to handle chemical and mechanical stress.
Advantages of Eutsler Bonding Solutions
- Customized adhesion chemistry ensures strong, durable, and media-resistant joints
- In-mold co-cure capability reduces secondary steps and potential bond contamination
- Extensive validation under cycling, environment, and mechanical loading
- Scalable for small-batch prototypes to high-volume manufacturing
- Traceable documentation & retained samples for customer and regulatory audits
