Eutsler Custom Elastomer Seal & Gasket Products
Introduction
At Eutsler Technical Products, we engineer and manufacture custom elastomer seals and gaskets designed to perform in the most demanding operating environments.
From high-pressure oilfield tools and chemical processing equipment to aerospace systems and industrial power units, our sealing products are precision-engineered, custom-compounded, and fully validated to ensure long-term reliability and leak-free operation.
Eutsler’s Enhanced Seal & Gasket Technology integrates custom elastomer formulation, advanced molding, bonding, machining, and inspection—all performed in-house under ISO 9001:2015-certified controls.
The result: high-integrity sealing products that meet your exact pressure, temperature, and chemical compatibility requirements.
Core Design Features
Application-Specific Compounds
- Elastomers custom-formulated for oil, fuel, steam, and chemical resistance
- Tailored hardness, compression set, tear strength, and rebound elasticity
- Optional dual-hardness or reinforced gasket structuresfor long-term sealing force retention
Precision Molding & Fabrication
- Compression, transfer, and injection molding for both flat and profile seals
- Bonded metal/fabric gasketsfor composite and dynamic environments
- Large-format molding for seals exceeding 36" OD (custom tooling available)
Dimensional & Surface Accuracy
- Tight dimensional tolerances per ARPM gasket standards
- Surface finishes optimized for compression, sealing, and adhesion applications
- Flatness and thickness controlled to ±0.005–0.010 in typical applications
Material & Compound Options
Eutsler compounds are designed from the molecular level for optimal sealing behavior under stress, temperature, and chemical exposure.
| Material Family | Examples | Key Attributes |
|---|---|---|
| Hydrocarbon-Resistant | NBR, HNBR, FKM, TFEP | Excellent oil, fuel, and gas resistance |
| Chemical & High-Temp | FKM, FFKM | Broad chemical resistance, 400–600 °F stability |
| Steam & Water Service | TFEP, EPDM, CSM | Excellent polar media resistance |
| General Purpose | NR, SBR, CR | High resilience and fatigue resistance |
| Low-Temp / Flexible | VMQ, FVMQ | Elasticity to –75 °F |
| Low Permeability | IIR, BIIR | Exceptional gas retention for vacuum seals |
Each elastomer system is verified through rheometry (ASTM D5289), tensile/elongation (ASTM D412), and compression set (ASTM D395) testing for predictable sealing performance.

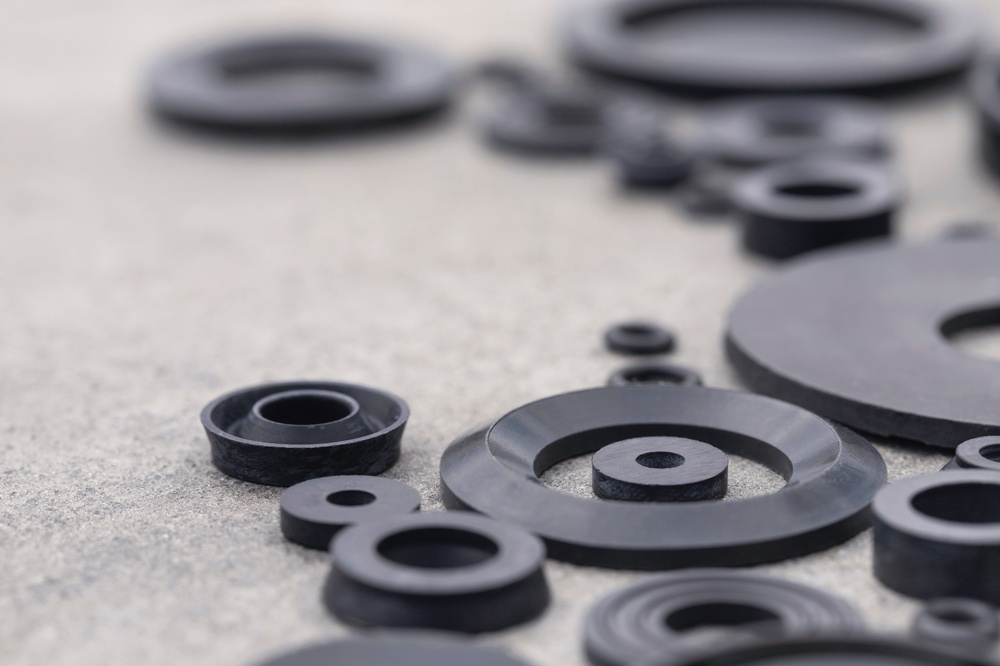

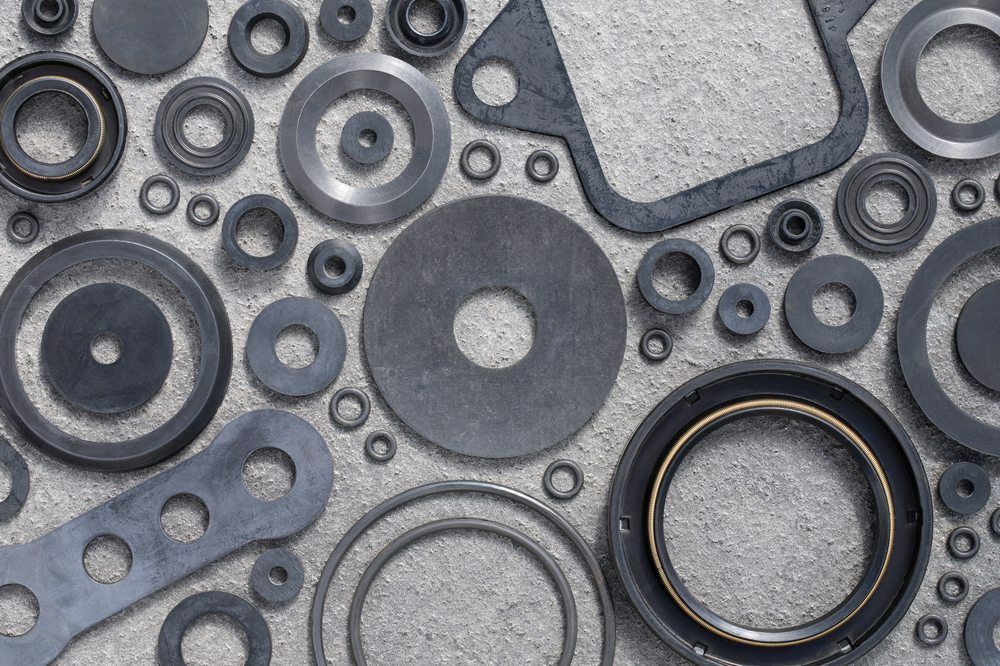

Seal & Gasket Types
Eutsler designs and manufactures virtually every elastomer seal and gasket geometry, including:
- Flat & Sheet Gaskets – Precision die-cut or molded profiles for flange and cover sealing
- Profiled Compression Seals – Round, square, D-rings, X-rings, quad-rings
- Bonded Seals – Elastomer-to-metal or elastomer-to-fabric structures for load control
- Custom Molded Gaskets – Complex geometries, flanged seals, and composite interfaces
- Dynamic Seals – Shaft, piston, and rotary seals designed for low friction and wear
- Lip & Flange Seals – Multi-lip configurations for differential pressure sealing
- Encapsulated Gaskets – FEP or PTFE-lined elastomer cores for chemical barrier performance
Manufacturing & Processing Capabilities
- Molding: Compression, transfer, and injection molding with optimized vent and flow control
- Cutting: Waterjet, laser, and die-cutting for precision gasket outlines
- Bonding: Chemical and mechanical adhesion to metals, composites, or fabrics (ASTM D429 qualified)
- Machining: Grinding, and surface shaping for tight-tolerance applications
- Post-Cure: Controlled thermal cycles for dimensional stability and outgassing reduction
Quality & Validation Testing
All products undergo rigorous quality control and validation testing per ASTM and ISO standards.
| Property / Test | Standard | Typical Target Range |
|---|---|---|
| Hardness | ASTM D2240 | 30 – 95 Shore A |
| Tensile Strength | ASTM D412 | 1,500 – 4,500 psi |
| Elongation | ASTM D412 | 150 – 700 % |
| Tear Strength | ASTM D624 | 100 – 400 ppi |
| Compression Set (70h @ 100 °C) | ASTM D395 | < 25 % |
| Heat Aging | ASTM D573 | ≤ 10 % property loss |
| Fluid Immersion | ASTM D471 | < 10 % volume change |
| Operating Temperature | — | –75 °F to +500 °F |
| Bond Strength (if applicable) | ASTM D429 | 10 – 25 MPa |
Engineering & Design Guidance
Compression & Contact Control
- Nominal compression: 10–30 %depending on hardness and seal type
- Uniform pressure distributiondesigned via finite element analysis (FEA)
- Custom geometry to reduce over-compression and improve stress distribution
Gasket Groove Design
- Groove fill typically 70–85 %for static seals
- Chamfers or fillets used to reduce corner stress and extrusion
- Optional anti-extrusion backup ringsfor high-pressure sealing
Bonded Seal Assemblies
- Elastomer-metal bonding for static high-load flanges
- Controlled tie-layer chemistry for thermal expansion compatibility
- Fabric reinforcement for dimensional stability
Applications
Eutsler elastomer seals and gaskets are used in mission-critical applications worldwide:
- Oil & Gas: Wellhead seals, packer elements, isolation rings, and API flange gaskets
- Aerospace: Engine and fuel system gaskets rated for wide thermal ranges
- Industrial: Pump, valve, and compressor seals for chemical plants and refineries
- Automotive: Engine, fuel, and brake system sealing
- Energy & Utilities: Steam turbine gaskets, high-voltage isolation seals, water treatment systems
- Food & Medical: FDA-grade silicone and EPDM gaskets for hygienic sealing
Advantages of Eutsler Seal & Gasket Technology
- Material-to-Part Integration: In-house compounding, molding, bonding, and testing
- Precision Manufacturing: Tight tolerance control and surface quality for leak-free sealing
- Chemical & Thermal Resistance: Compounds proven across oil, chemical, and steam environments
- Fully Traceable Quality System: ISO 9001:2015-certified processes and batch documentation
- Rapid Prototype to Production Capability: Streamlined R&D and tool design turnaround
- Validated Durability: All products tested for long-term compression and fatigue performance
Performance Envelope
| Capability | Typical Range / Limit |
|---|---|
| Hardness | 30 – 95 Shore A |
| Temperature Range | –75 °F to +500 °F |
| Pressure Capability | Up to 20,000 psi (geometry dependent) |
| Compression Set | < 25 % |
| Tear Strength | 100 – 400 ppi |
| Bond Strength | 10 – 25 MPa (if bonded) |
| Dimensional Tolerance | ± 0.005 – 0.020 in (ARPM A1–A3) |
From Design to Production
- Define– Performance, environment, and regulatory requirements
- Design– Compound, geometry, and bonding selection
- Prototype– Molded samples and validation testing
- Validate– ASTM, ISO, and customer-specific qualification
- Deliver– Certified, traceable production-ready seals and gaskets
Partner with Eutsler Technical Products
Eutsler delivers precision-engineered elastomer seals and gaskets tailored to your application’s chemical, mechanical, and thermal environment.
With complete in-house control from formulation through inspection, we guarantee performance, consistency, and reliability—part after part, batch after batch.
Rubber Seal Manufacturer
Eutsler offers molding, extrusion and die cutting services, using custom molds designed for each part. Seals manufactured by Eutsler meet the Rubber Manufacturers Association (RMA) tolerances, and can be from ¼ inch to 30 inches. We offer both short- and long-run manufacturing.
Eutsler provides its customers with efficient, cost-effective manufacturing of custom seals for all industrial parts. Our turnkey services, from R&D, design and material selection through manufacturing, ensure that all our client’s custom seals are produced to exact specifications and meet their quality requirements. Contact us today for more information.
Rubber Seal Materials Include:
- Acrylates
- EPDM
- Fluoroelastomers
- Natural Rubbers
- Nitriles
- SBR
- Silicone
- Urethane
- Specialty Elastomers
Get in Touch with Our Experts Today!
Why Choose Eutsler Technical Products?
R&D
Experienced staff develop high performance and long life parts
Material Selection
Over 300 compounds or custom elastomeric compounds available
Mold Design
Custom molds are designed ensuring tolerances are met
Manufacturing
Molding, extrusion and die cutting services to build your part
