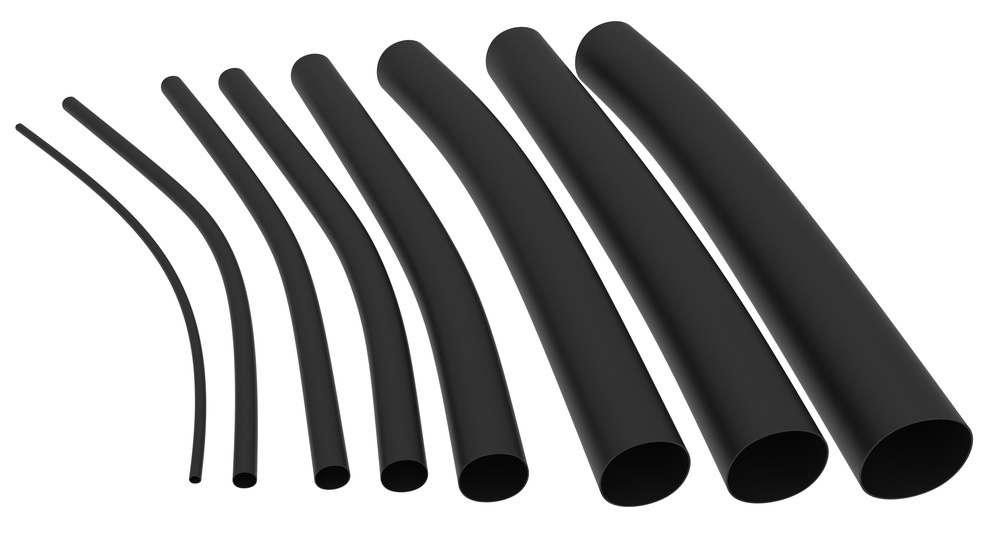

Eutsler Custom Molded Elastomer Sleeves, Tubes, and Bladder Products
Introduction
Eutsler Technical Products designs and manufactures custom molded elastomer sleeves, tubes, and bladders engineered for pressure containment, motion isolation, and fluid management in demanding environments.
Our Molded Elastomer Technology integrates custom compound design, advanced molding, precision finishing, and full QA validation—ensuring consistent performance in hydraulic, pneumatic, oilfield, and industrial applications.
From thin-wall flexible bladders to reinforced sleeves and bonded tube assemblies, Eutsler delivers elastomer products with precise wall control, durability, and long-term elasticity across wide temperature and pressure ranges.
Core Design Features
Custom Geometry & Wall Control
- Engineered sleeve and tube geometries for uniform wall thicknessand pressure-balanced performance
- Variable wall profiles for targeted flexibility and burst strength zones
- Inner and outer diameters controlled to ±0.005–0.020 independing on size and compound
Advanced Material Systems
- Compounds tailored for hydrocarbon, chemical, and steam resistance
- High-strength, fatigue-resistant elastomers with controlled modulus for repetitive pressure cycling
- Reinforced and layered construction options for high-pressure bladders or abrasive service
Dimensional Stability
- Molded concentricity verified via CMM and optical inspection
- Controlled shrinkage via in-mold cure temperature uniformity
- Post-cure thermal treatmentfor stress relaxation and gas permeability stabilization
Material & Compound Options
Eutsler formulates custom elastomer compounds to achieve the required flexibility, pressure retention, chemical resistance, and fatigue life for each application.
| Elastomer Family | Examples | Key Attributes |
|---|---|---|
| Hydrocarbon-Resistant | NBR, HNBR, FKM | Fuel and oil resistance, tear and compression stability |
| Chemical & Steam Service | EPDM, TFEP, FFKM | Excellent for polar fluids, amines, and steam exposure |
| Dynamic / Fatigue-Resistant | NR, SBR, CR | High resilience and elastic recovery for cyclic flexing |
| High-Temperature Service | FKM, FFKM, FVMQ | Continuous use up to 500 °F |
| Low-Temperature Flexibility | VMQ, FVMQ, IIR | Elasticity maintained to –75 °F |
| Reinforced Systems | HNBR, XNBR + aramid or fabric | For high-pressure, abrasion, and impact resistance |
Each compound is designed and tested for tensile strength, elongation, tear, and compression set, ensuring reliable performance under cyclical strain and pressure.
Manufacturing Capabilities
Molding
- Compression, transfer, and injection moldingfor seamless tubular or bladder geometries
- Custom tooling and mandrel systemsfor controlled wall thickness and ID/OD tolerances
- Bonded constructionsfor elastomer-to-metal or fabric reinforcement
Reinforcement Integration
- Internal or external reinforcement with fabric, aramid cord, or wire mesh
- Controlled ply overlap and tension for consistent stress response
- Multi-layer co-curing with inner sealing and outer structural elastomer layers
Post-Processing
- Cryogenic or mechanical deflashing for clean edges
- Post-cure thermal treatment for full crosslink completion and dimensional stability
- Surface finishing (polishing, grinding, or coating) for smooth flow and abrasion reduction
Quality & Testing
All molded sleeves, tubes, and bladders are validated through Eutsler’s in-house QA lab using ASTM test methods.
| Property | Test Method | Typical Range / Value |
|---|---|---|
| Hardness | ASTM D2240 | 40 – 95 Shore A |
| Tensile Strength | ASTM D412 | 1,500 – 4,500 psi |
| Elongation | ASTM D412 | 200 – 700 % |
| Tear Strength | ASTM D624 | 100 – 400 ppi |
| Compression Set | ASTM D395 | < 25 % |
| Burst Pressure | Custom test | Up to 5,000 psi (geometry dependent) |
| Heat Aging | ASTM D573 | ≤ 15% property loss |
| Fluid Resistance | ASTM D471 | < 15 % volume change |
| Gas Permeability | ASTM D1434 | Low; compound-specific |
Each batch is traceable with compound formulation ID, cure profile data, and dimensional inspection records.
Design & Engineering Considerations
Pressure & Fatigue Design
- Wall thickness and compound modulus optimized
- Burst and fatigue resistance predicted using stress–strain and relaxation modeling
- Elastomer selection based on operating pressure, temperature, and chemical media
Geometry Optimization
- Cylindrical, conical, and variable-wall designs available
- Smooth inner surfaces for flow-critical applications
- Outer ribs, grooves, or texturing for mounting or grip interfaces
Bonding & Reinforcement
- Elastomer-to-metal bonding(e.g., to end collars or fittings) for integrated assemblies
- Fabric reinforcement layersimprove hoop strength and resist ballooning
- Compatible with metal, composite, or thermoplastic substrates
Applications
Eutsler’s molded elastomer sleeves, tubes, and bladders serve a wide range of industries and functions:
- Oil & Gas: Downhole packer bladders, isolation sleeves, and pressure equalization tubes
- Industrial: Hydraulic accumulators, pressure bladders, expansion joints
- Aerospace: Pneumatic sleeves, containment bladders, and fuel system components
- Automotive: Suspension air bladders, hydraulic dampers, and flexible couplings
- Energy / Power: Insulated sleeves, cable seals, and fluid isolation tubes
- Medical / Food-Grade: FDA and USP Class VI silicone bladders for containment or actuation
Advantages of Eutsler’s Molded Sleeve, Tube & Bladder Technology
- Custom Compound Engineering: Formulated for specific pressure, media, and thermal conditions
- Precision Wall and Diameter Control: Molded tolerances to ±0.005 in on critical dimensions
- Reinforced Construction Options: Fabric or metal reinforcement for strength and pressure control
- Full Traceability & Testing: Each batch validated with mechanical, chemical, and dimensional data
- Integrated Bonding Capability: Multi-material assemblies—rubber-to-metal, fabric, or composite
- Proven Durability: Fatigue-tested for millions of flex cycles under pressure
Performance Envelope
| Capability | Typical Range / Limit |
|---|---|
| Hardness | 40 – 95 Shore A |
| Temperature Range | –75 °F to +500 °F |
| Pressure Rating | Up to 5,000 psi (geometry-dependent) |
| Burst Safety Factor | 2× – 3× rated working pressure |
| Tensile Strength | 1,500 – 4,500 psi |
| Tear Strength | 100 – 400 ppi |
| Compression Set | < 25 % |
| Fatigue Life | > 10⁶ flex cycles typical |
| Dimensional Tolerance | ± 0.005 – 0.020 in |
From Concept to Production
- Define– Performance criteria, environmental exposure, and operating parameters
- Design– Geometry, material, and reinforcement modeling via FEA
- Develop– Mold tooling and compound formulation
- Validate– Lab testing for burst, fatigue, and chemical resistance
- Deliver – Fully qualified, traceable production components
Partner with Eutsler Technical Products
Eutsler’s Custom Molded Elastomer Sleeves, Tubes, and Bladders are built for applications where elastic integrity and pressure containment are mission-critical.
With complete in-house control over formulation, molding, bonding, and testing, we ensure every component meets exact specifications for performance, consistency, and durability.
Our Rubber Sleeve Manufacturing Process
Eutsler's staff works with each client to design a protective ID/OD sleeve to meet the exact requirements for your rubber bladder. Rubber sleeves can be custom manufactured from 1/4 inch to 30 inches, and all parts manufactured by Eutsler meet the Rubber Manufacturers Association (RMA) tolerances for finished parts. Our staff will assist in the selection of the correct rubber compound to be used based on the use of the part and the conditions in which it will be used. Sleeves are used as protection in harsh environments, and the selection of the rubber compound for the part is critical in extending wear life of both the part and the tube or tubing being protected. Eutsler has over 300 rubber compounds available and can custom-blend an elastomeric compound if needed. All compounds used by Eutsler are tested to ASTM standards to ensure the integrity of the materials used for our custom rubber sleeves.
Rubber Bladder Tubing Applications
We manufacture custom rubber sleeves and sleeves for use in any industry, including:
- Oil & Gas
- Mining
- Petrochemical
- Energy
Eutsler provides turnkey design, material selection and manufacturing services for 100% custom rubber ID/OD sleeves, resulting in high quality, cost-efficient parts.
Get in Touch with Our Experts Today!
Custom Rubber Sleeves Services
Part of our turnkey service includes the determination of the most effective manufacturing process for each custom ID/OD protective sleeve production run. Sleeves can be manufactured using molds or mandrel wrapping process. Use of mandrel wrapping can lower manufacturing costs and time, as it eliminates the need for specialized tooling and reduced production time. Mandrel wrapping is used for small-run, specialized sleeves, or sleeves that need to be closely fitted to the tube.
Contact Eutsler today for more information or to get your project started!
Why Choose Eutsler Technical Products?
R&D
Experienced staff develop high performance and long life parts
Material Selection
Over 300 compounds or custom elastomeric compounds available
Mold Design
Custom molds are designed ensuring tolerances are met
Manufacturing
Molding, extrusion and die cutting services to build your part
